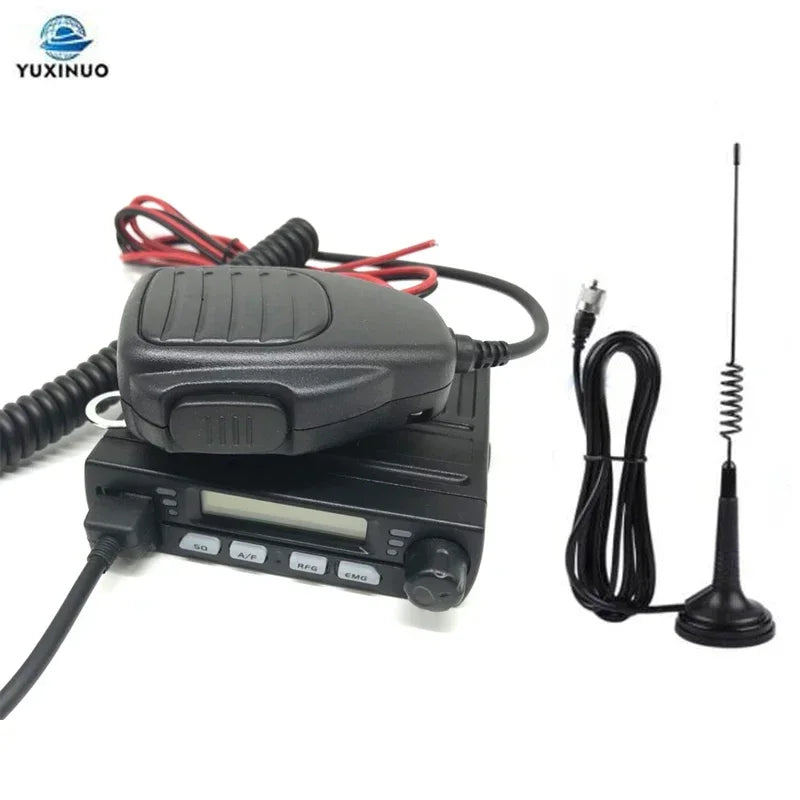

CB-40M Citizen Band Radio AM/FM Mini Mobile CB Radio AR-925 25.615--30.105MHz 8W Amateur Car Radio Station + Mag-1345 Antenna

only CB Radio

$108.18

CB-40M Citizen Band Radio AM/FM Mini Mobile CB Radio AR-925 25.615--30.105MHz 8W Amateur Car Radio Station + Mag-1345 Antenna

$108.18

SPECIFICATIONS

Brand Name: YUXINUO

Certification: CE

DIY Supplies: Electrical

High-concerned chemical: None

Origin: Mainland China

Notice: support 3 different style for choose: (different style, price diffrent, please choose which you want)

1, only 1pcs Mag-1345 Antenna ,Not included CB-40M Radio,

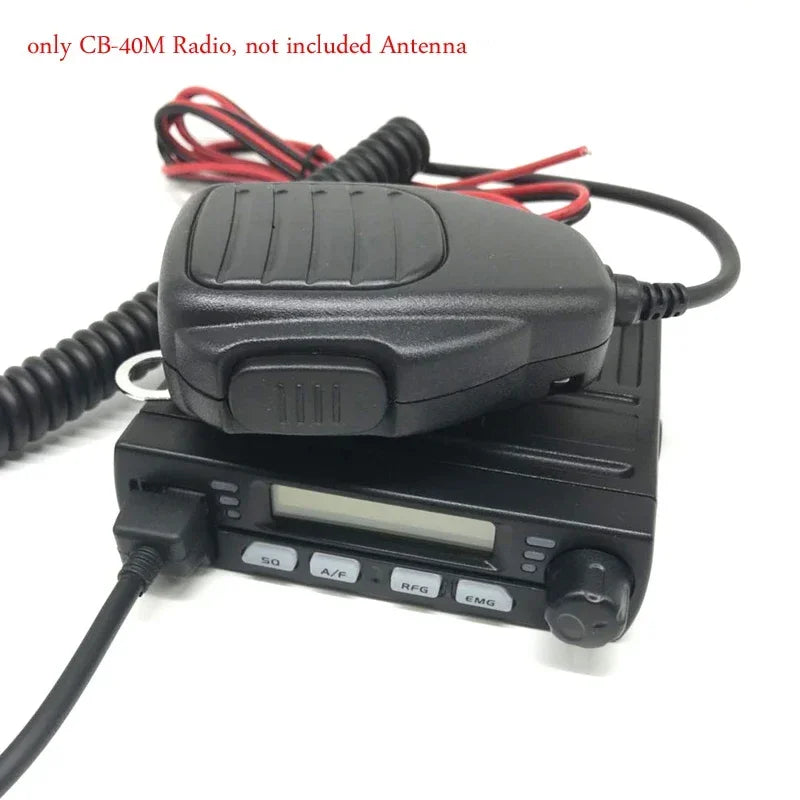

2, only 1pcs CB-40M radio, not included Antenna

3, Set CB-40M radio + Mag-1345 antenna

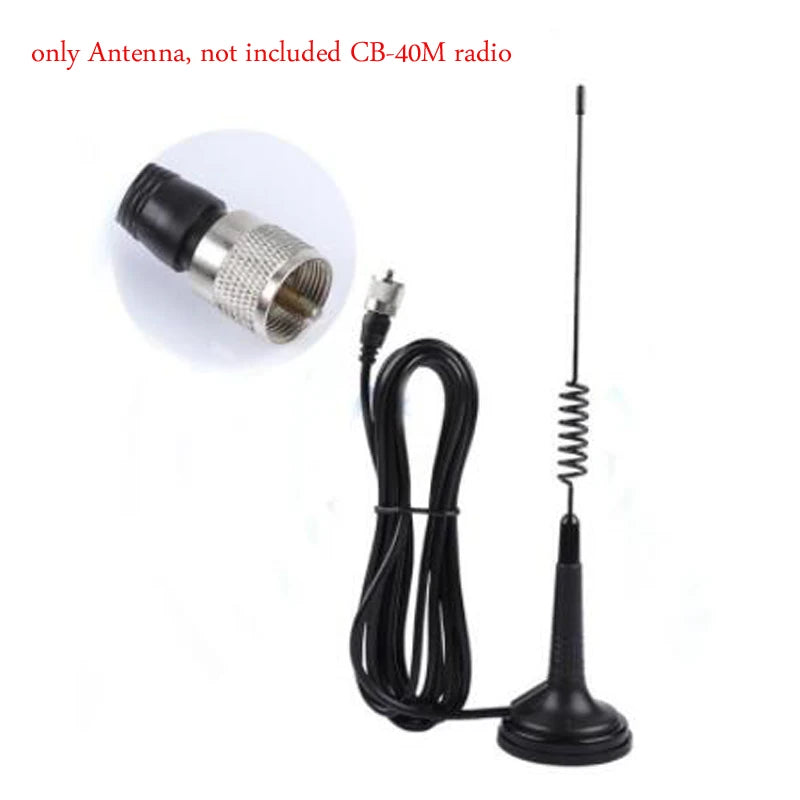

Antenna Item detail:

*high gain

*CB band with center frequency 27MHz

*with min magnet base

*easy to install

*4M RG58U feeder cable

Specification:

Frequency: 26-28MHz (Center 27MHz)

Gain:3.0dB

Impedance:50Ω

Max Input Power:30W

Standing-wave Ratio (SWR): <1.5

Connector: UHF(PL259)M

Length of feeder Cable:4m

Lenght: 31.5cm (base3.5+antenna 28cm)

Weight:510g

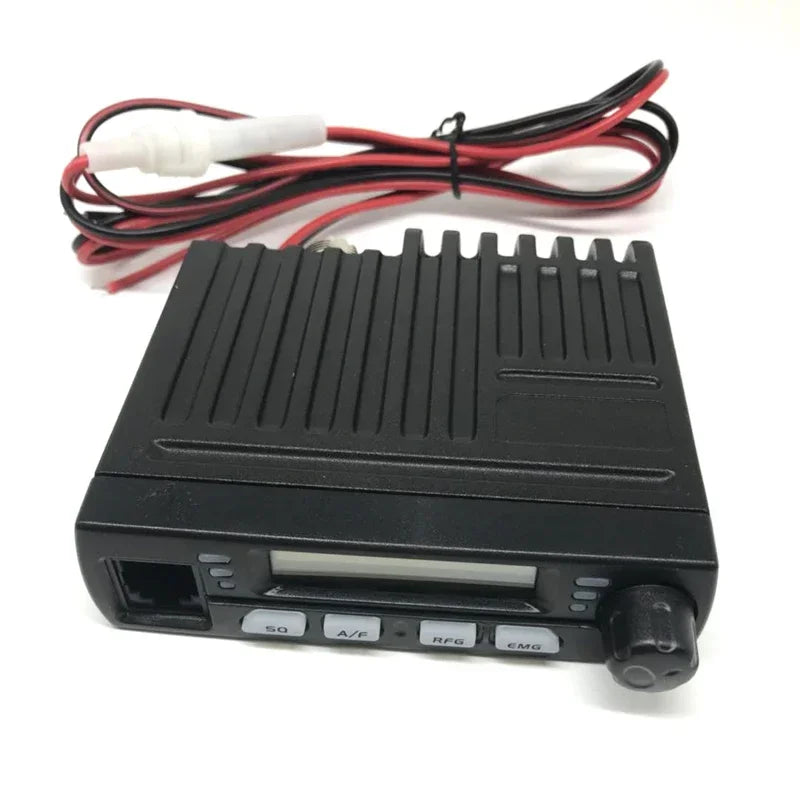

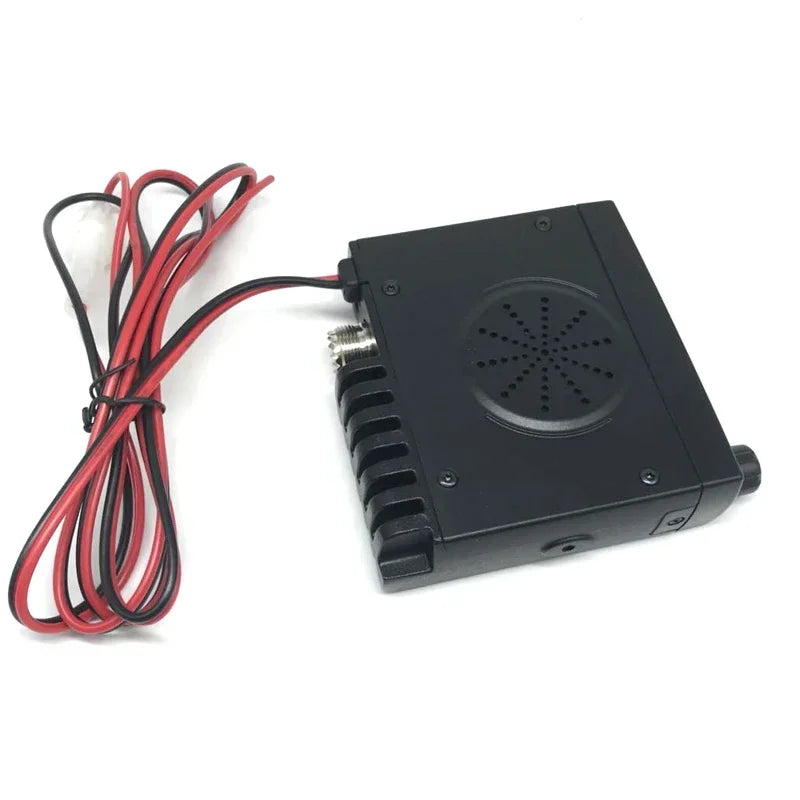

CB-40M radio Detail:

Item Features:

Squelch Control

LCD display

Mode/Scan Key

Power On/Off Volume Control

External Speaker Jack

Antenna Jack

AM/FM multi norms

SQ,ASQ Switch Key

RF Gain Control

Scan

CH9/CH19 Keypad lock

Specifications:

Modulation Mode: AM/FM

Frequency Range: 25.615-30.105MHz

Frequency Tolerance: ±5.0ppm

Input Voltage: 13.2V

Dimensions (mm): 109(W) x 104(D) x 25(H)

Weight: Approx.421g

Frequency Control: PLL Synthesizer

Operating Temperature Range: -20°c ~ +50°c

Transmit: 2A Max

Receiver: Squelched 0.3A

VOL Max: 0.8A

Antenna Conector : UHF,SQ-239

TRANSMITTER:

Output Power: 8 Watt FM/AM

Transmission interference: Inferior to 4nW(-54dBm)

Frequency Responsz: 300-3000Hz

Modulated signal distortion: Inferior to 5%

Output Impedance: 50 ohms

RECEIVER:

Sensitivity: Less than 1uV for 10dB(S+N)/N

Image rejection: 70dB

Adjacent channel rejection: 60dB

IF Frequency

1st 10.695MHz

2nd 455KHz

Automatic Gain Control (AGC):

Less than 10dB change in audio

Output for inputs from 10 to 50000uV

Squelch: Less than 1uV

Audio Output Power: 1 watts

Frequency Response: 300-3000Hz

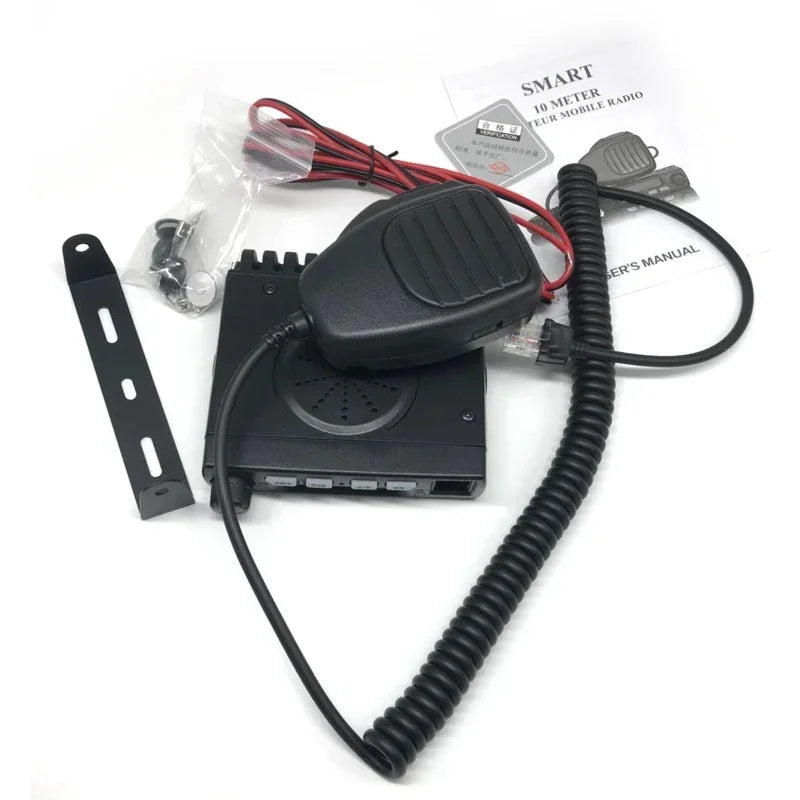

Package：

1 x AR-925 CB Radio

1 x Speaker Microphone

1 x Bracket

1 x Fuse

2 x Fixing Screw sets

1 x ENG USERS' Manual

Shipping Time Tips:

All of package sent by registered mail. with tracking number can follow package statu. it is security of safe freight. Shipping time is about 20--50 days. As a result of various countries' policies and weather and other reasons. sent to diffrent country ,shipping time will be diffrent. Has any questions. please feel free to contact me through ali message. thank you!

Feedback:

Leave negative feedback is can not solve problem. There are many, more positive ways to phase this about good communication Please sent message to us through Aliexpress. we will try us best to solve your problem. thank you!

About Taxes:

We will try our best to service you. Because custom rules are different in each country, tariffs and excise taxes are not our responsibility and we're not qualified to answer questions on this topic. Please research your country's tariffs and import excise taxes before purchasing..
