SPECIFICATIONS

Battery Included: No

Bluetooth: No

Brand Name: TZT

Function: None

High-concerned chemical: None

Origin: Mainland China

Package: Yes

Style: Portable

Type: CB

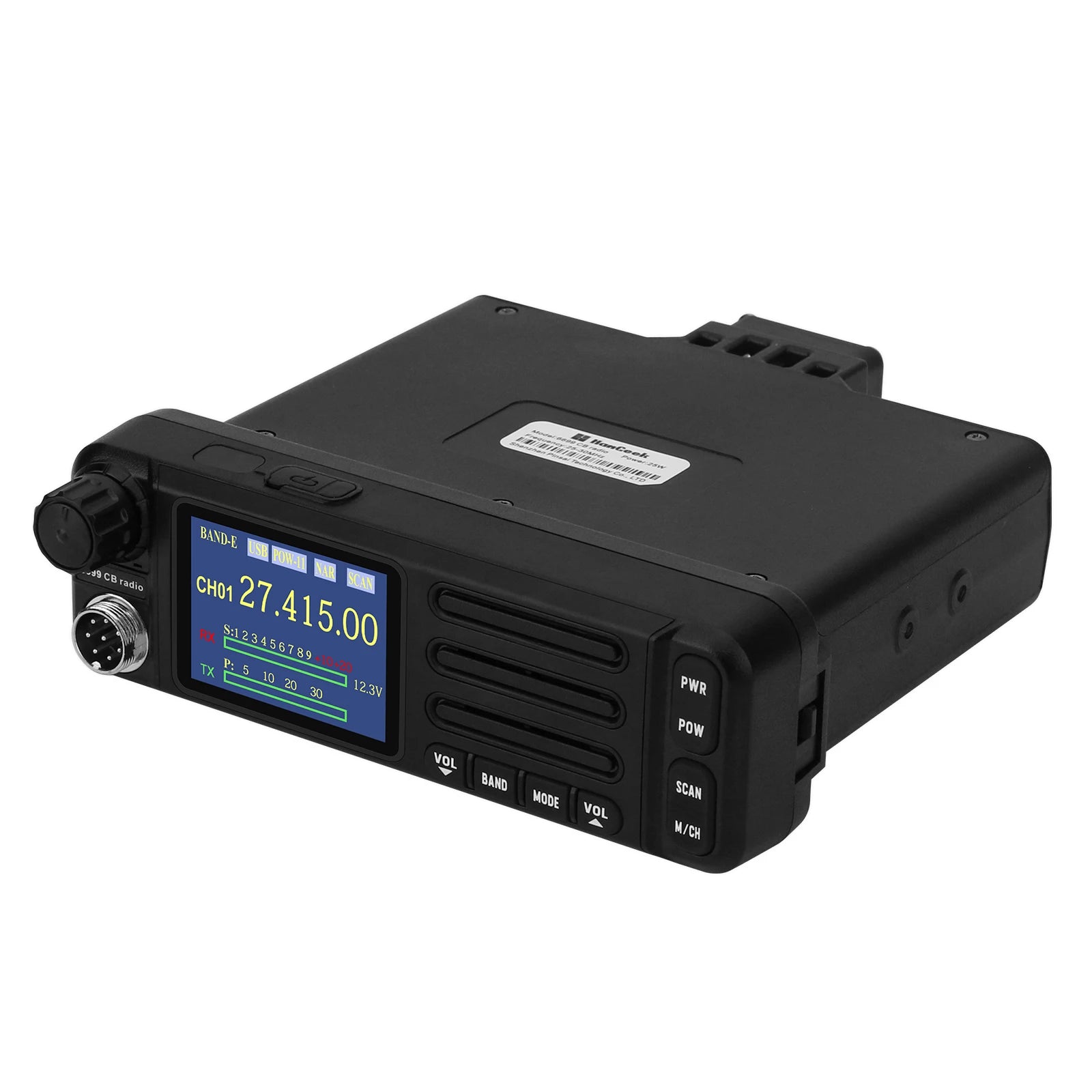

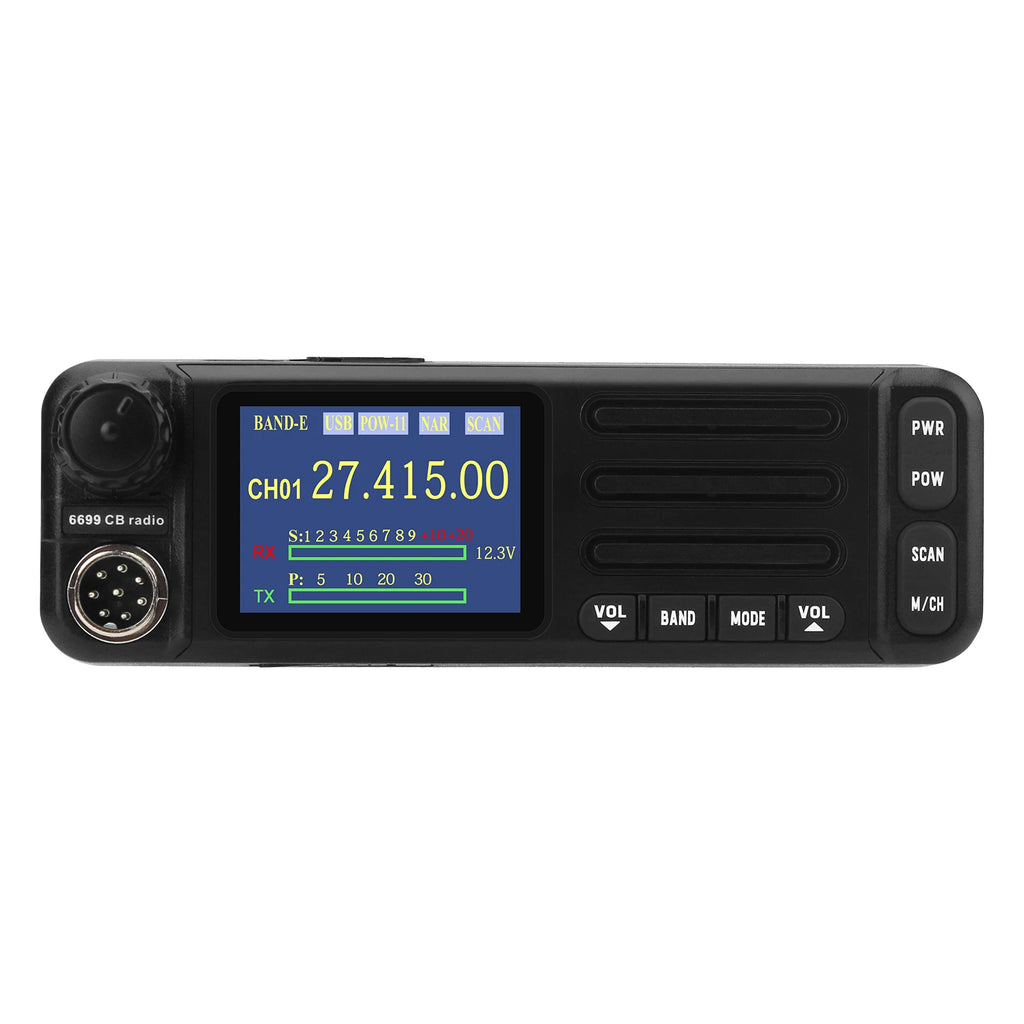

HamGeek 6699-CB Radio 1-30MHz/21-30MHz Mobile Radio Supporting FM/AM/CW/SSB Modes with Microphone

Features:

* HamGeek professional transceiver

* Supported modes: FM/AM/CW/SSB (USB/LSB)

* Transmission power adjustment

* Frequency range: 1–30MHz

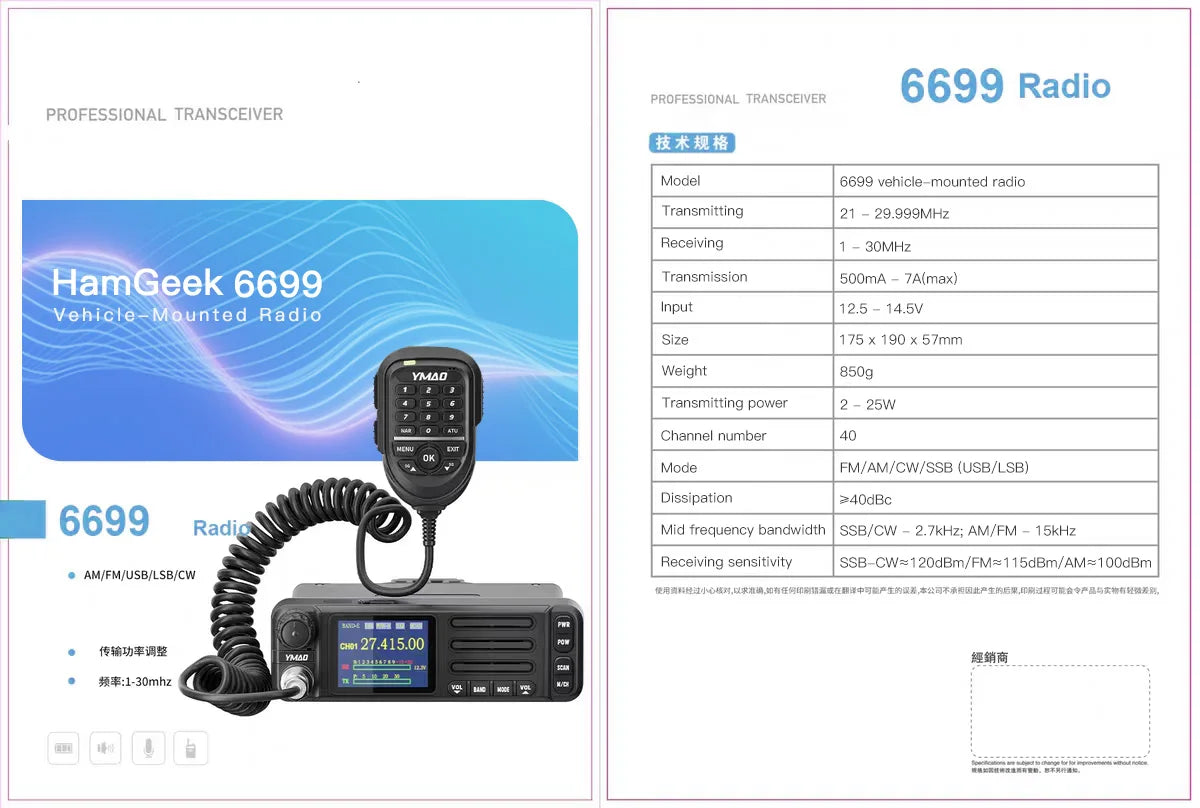

Technical Specifications:

* Brand: HamGeek

* Radio Type: Mobile Radio

* Transmission Frequency: 21–29.999MHz

* Reception Frequency: 1–30MHz

* Transmission Current: 500mA–7A (Max)

* Input Voltage: 12.5–14.5V

* Dimensions: 175mm × 190mm × 57mm

* Weight: 850g

* Transmit Power: 2–25W

* Modes: FM/AM/CW/SSB (USB/LSB)

* Spurious Emissions: ≥40dBc

* IF Bandwidth: SSB/CW: 2.7kHz; AM/FM: 15kHz

* Receiving Sensitivity: SSB/CW ≈ -120dBm; FM ≈ -115dBm; AM ≈ -100dBm

* Channel Modes: CH/VFO modes switchable

* Channel Bands: A/B/C/D/E/F/G/H/I/J/K/L/M/N/O

* Channels: 40 channels per band

* Tuning Steps (VFO Mode): 10Hz-100Hz-1kHz-10kHz-100kHz-1MHz-10MHz

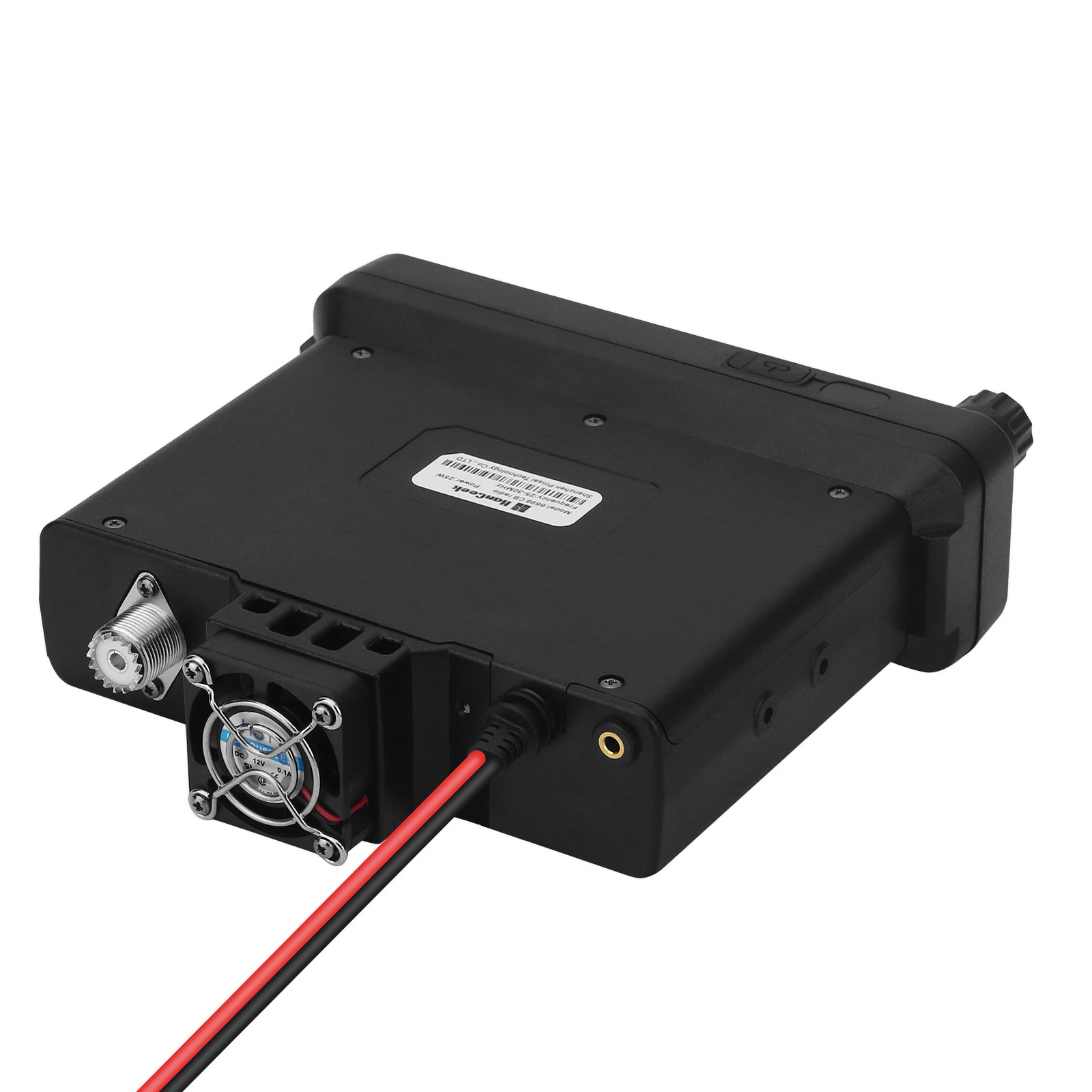

* Antenna Impedance: 50Ω unbalanced (M-type connector)

* Receiving Method: Superheterodyne

* Dynamic Range: ≥ 90dB

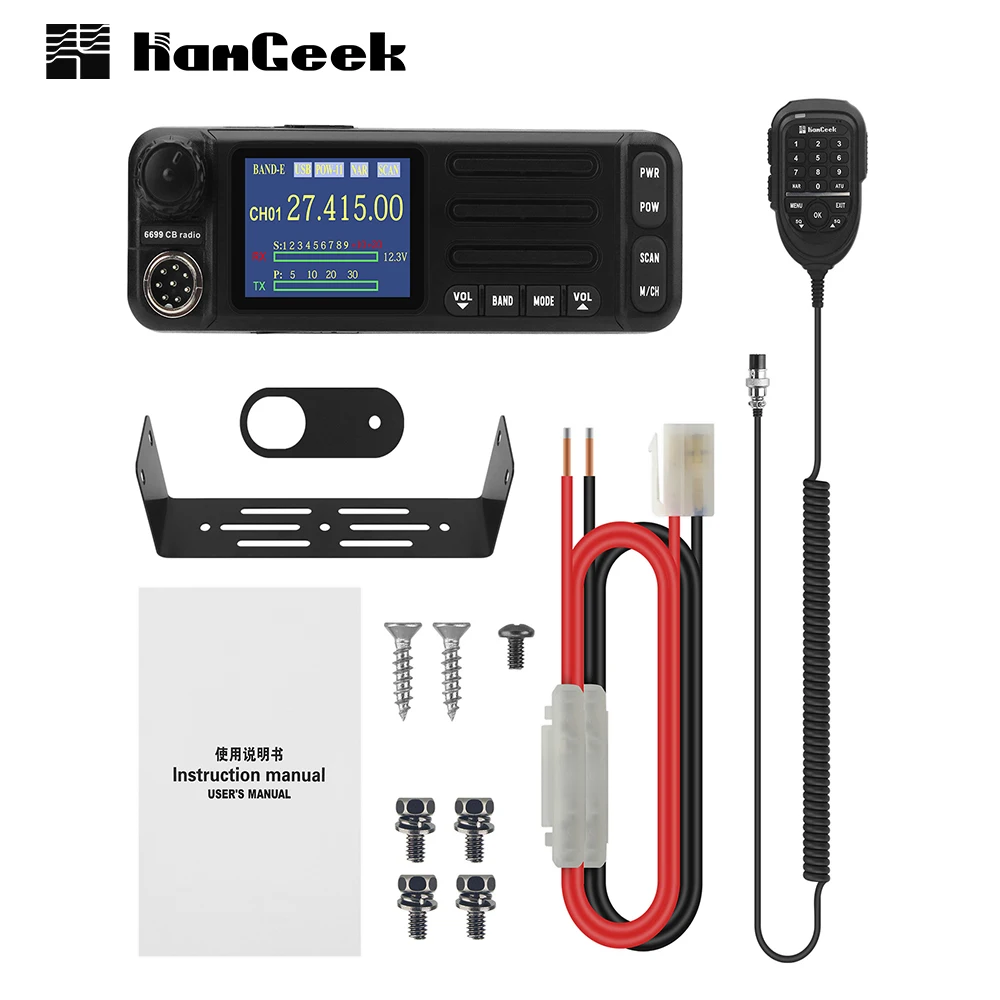

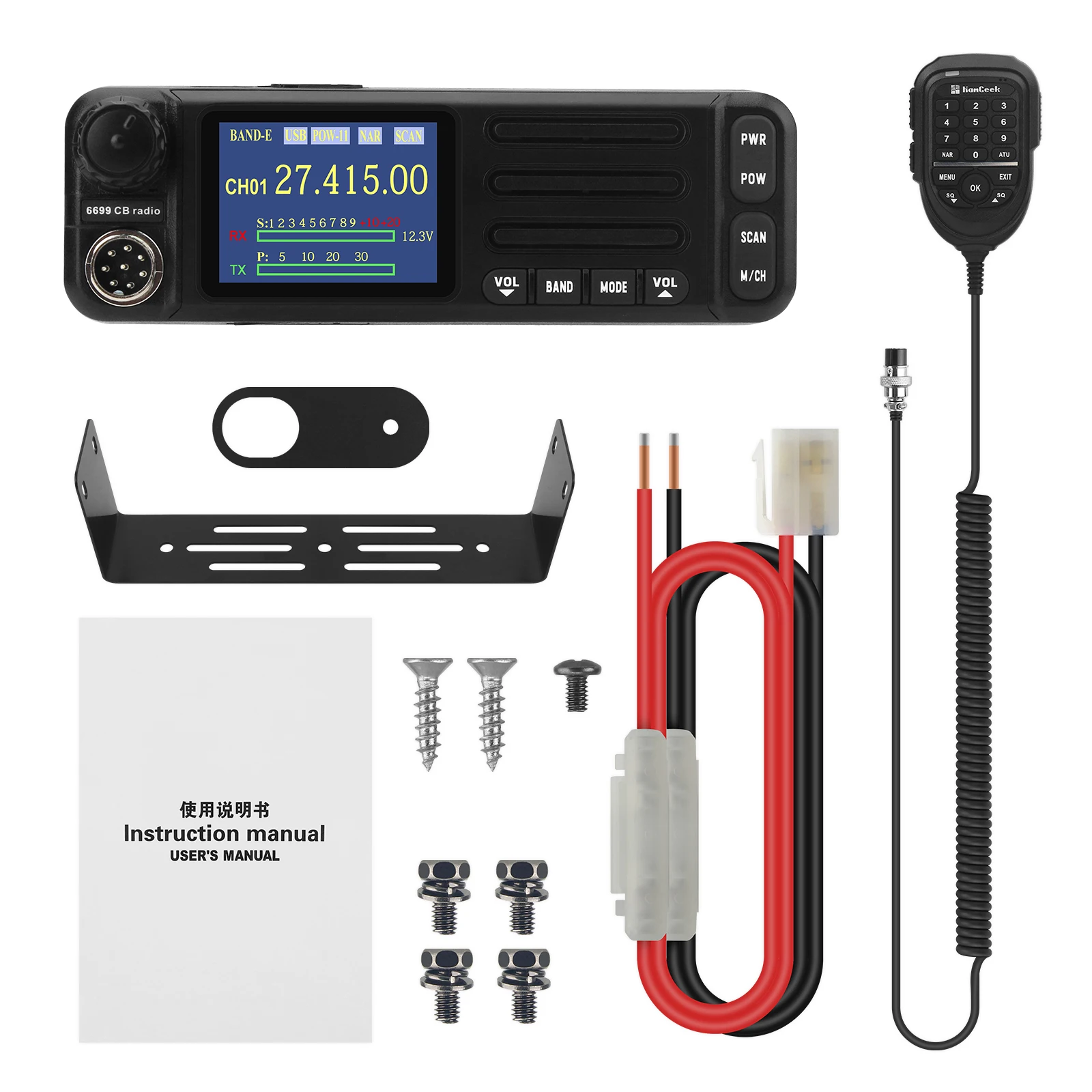

Packing List:

* 1 × HamGeek Transceiver with Microphone

Packaging Details:

* Weight: 1kg

Safety Precautions:

* Do not operate the device during thunderstorms.

* Keep the device away from water and do not expose it to splashes.

* Do not use the device in violation of operating instructions.

* Caution: High RF voltage at the antenna port.

Warnings:

* The transmission function is intended for amateur use and is provided as a complimentary feature.

* The main unit does not support an automatic antenna tuner (ATU or coupler) and must not be used with an antenna SWR above 1.6. If SWR ≥ 1.8, transmission will stop and the LCD will display an HSWR warning.

* The device only detects and protects against high impedance SWR (not 100% reliable); low impedance SWR may not be detected.

* Always ensure the antenna parameters are correct before transmission.

* Do not exceed the rated power supply voltage. The unit cannot power on if voltage is below 11 V DC.

* Do not reverse the polarity of the power supply — reversed polarity may damage the unit.
