$108.33

$108.33

SPECIFICATIONS

Battery Included: No

Brand Name: TYT

Certification: CE,FCC

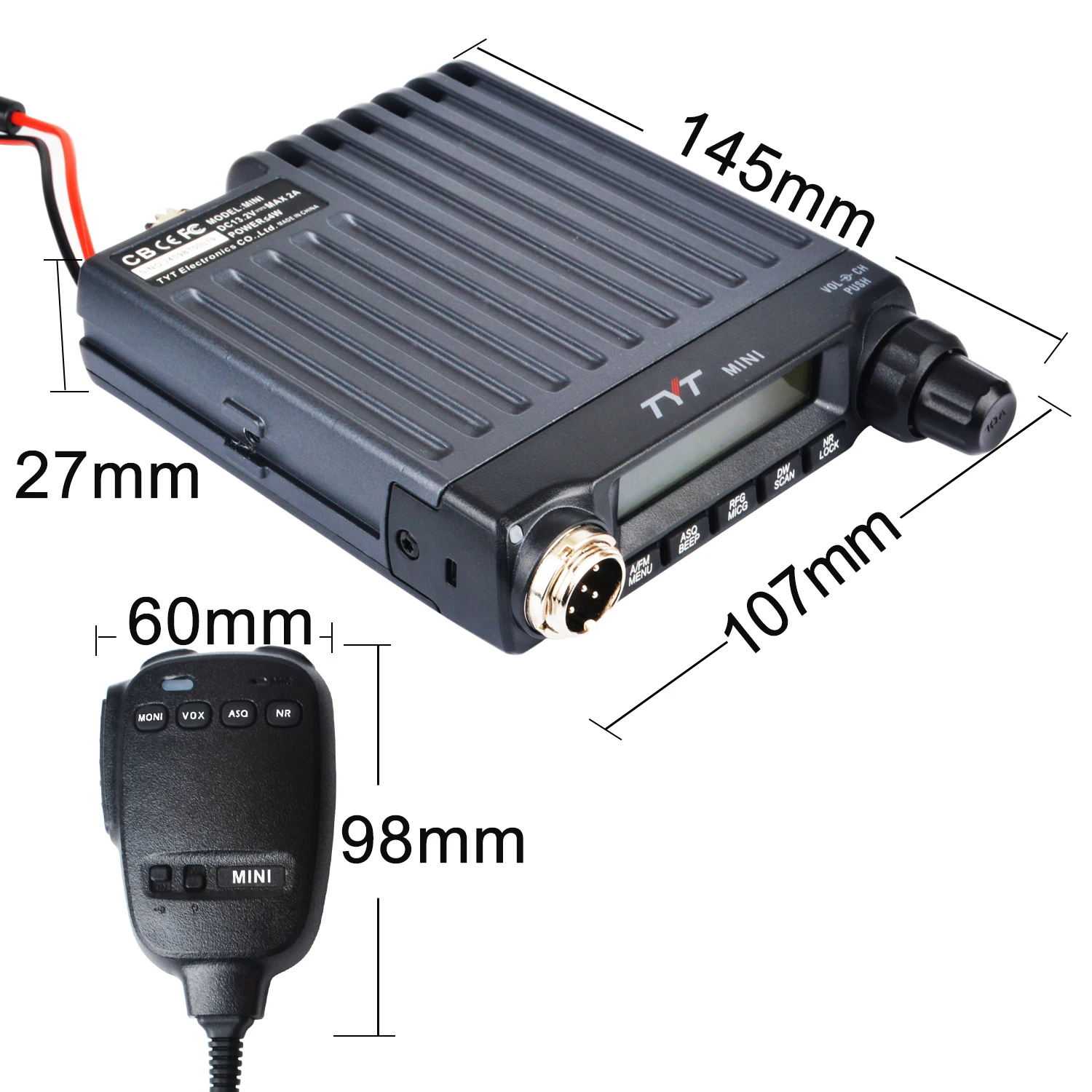

Dimensions: 145*107*27mm

Frequency Range: 26.96500-27.40500MHz

High-concerned chemical: None

Is_Display: Yes

Material: Plastic

Maximum Range: 3km-5km

Model Number: CB Mini

Origin: Mainland China

Output Power(w): 3w-5w

Storage Channel: 40

Walkie Talkie Type: Car

Waterproof / Water-Resistant: No

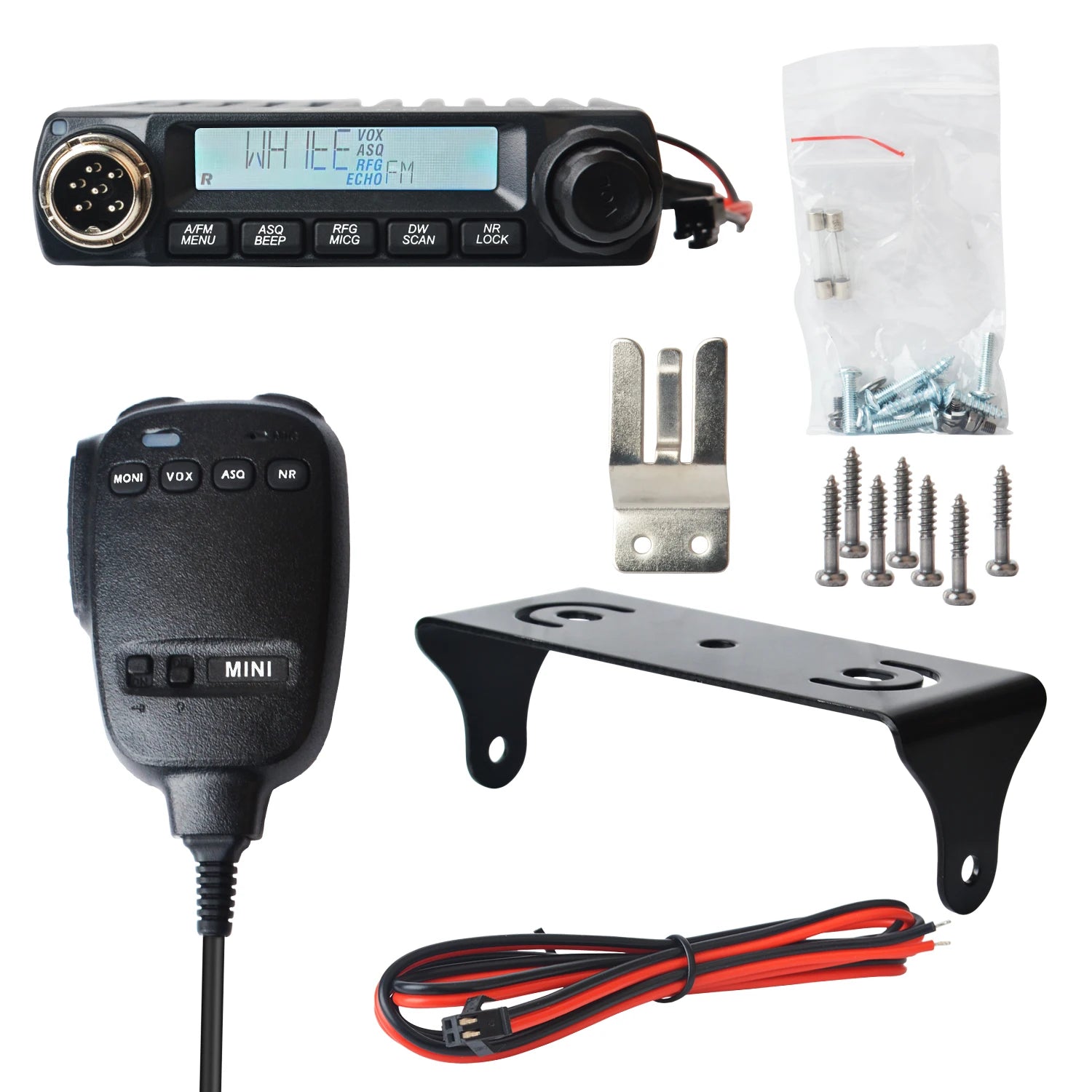

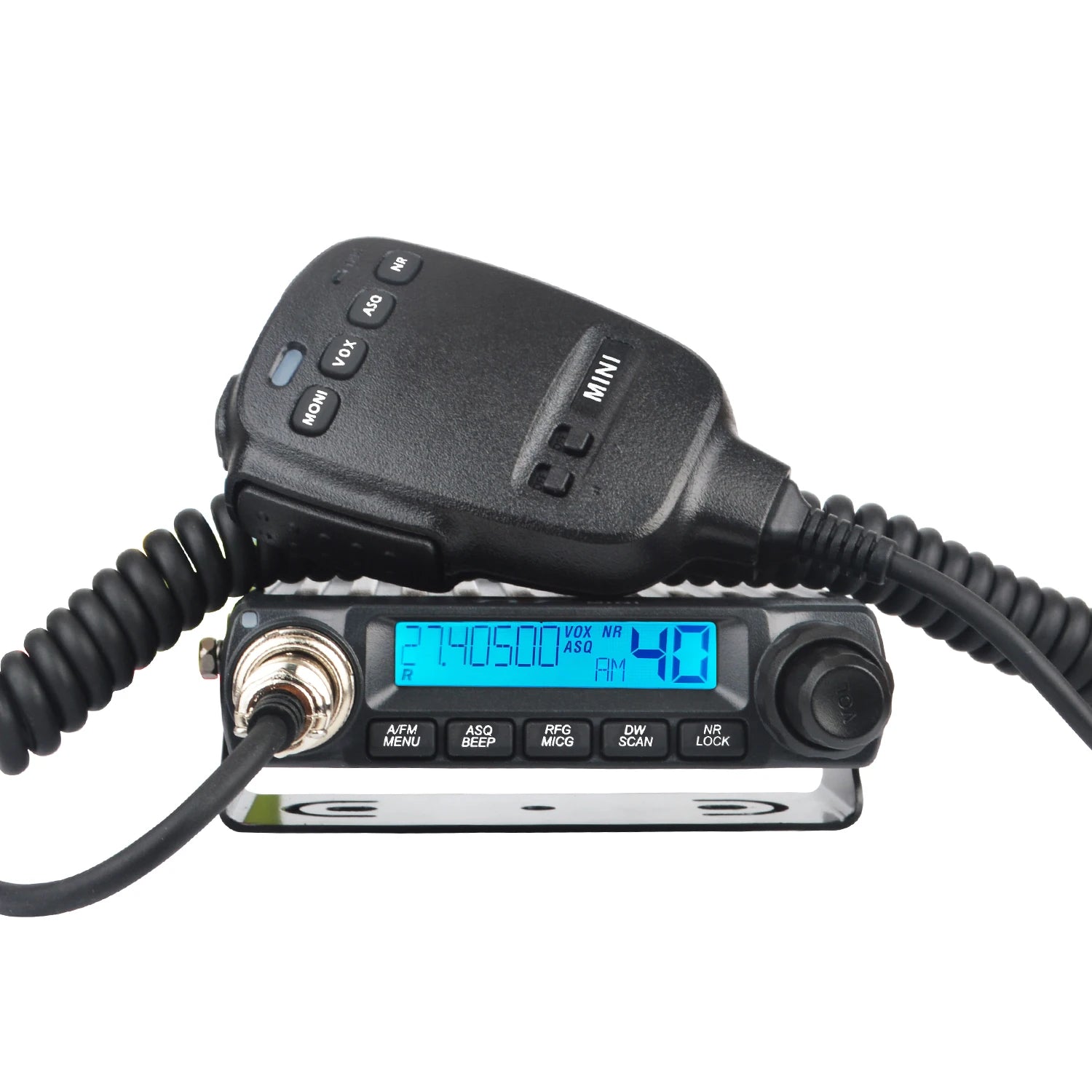

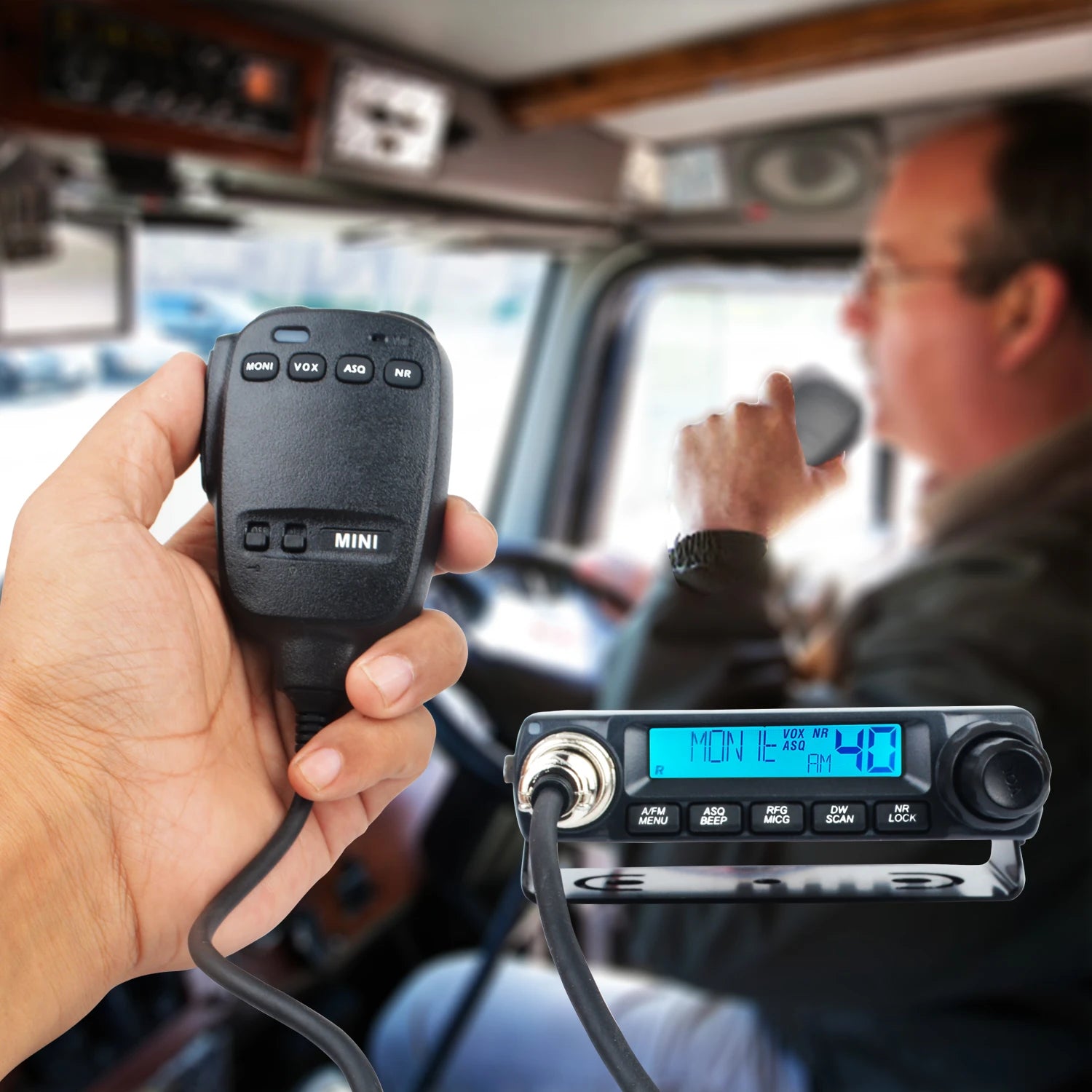

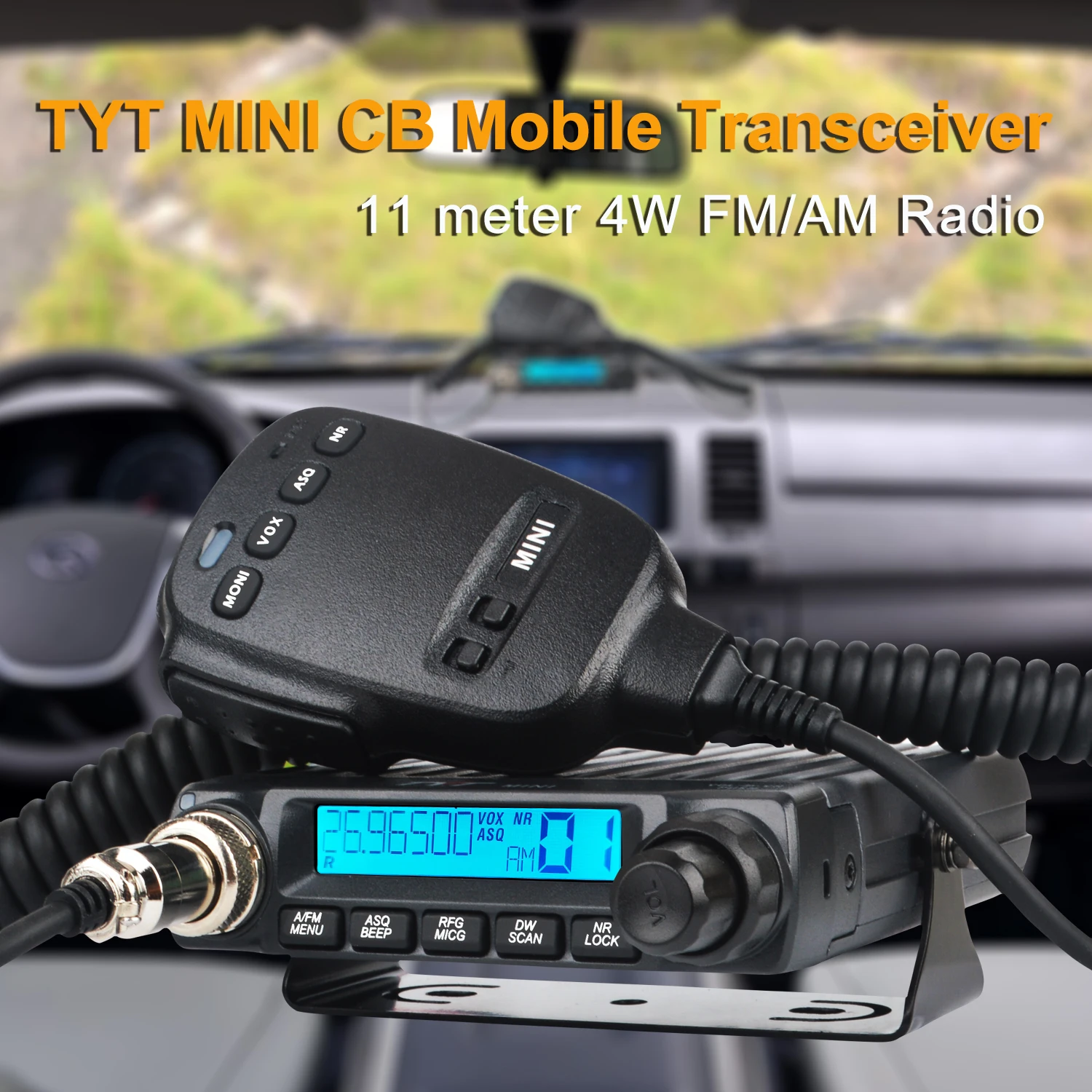

TYT CB Mini Walkie Talkie 11 Meters 27MHz Radio European Citizen Band 4W 40Channels 26.96500-27.40500MHz AM/FM Vox Mobile Tranceiver

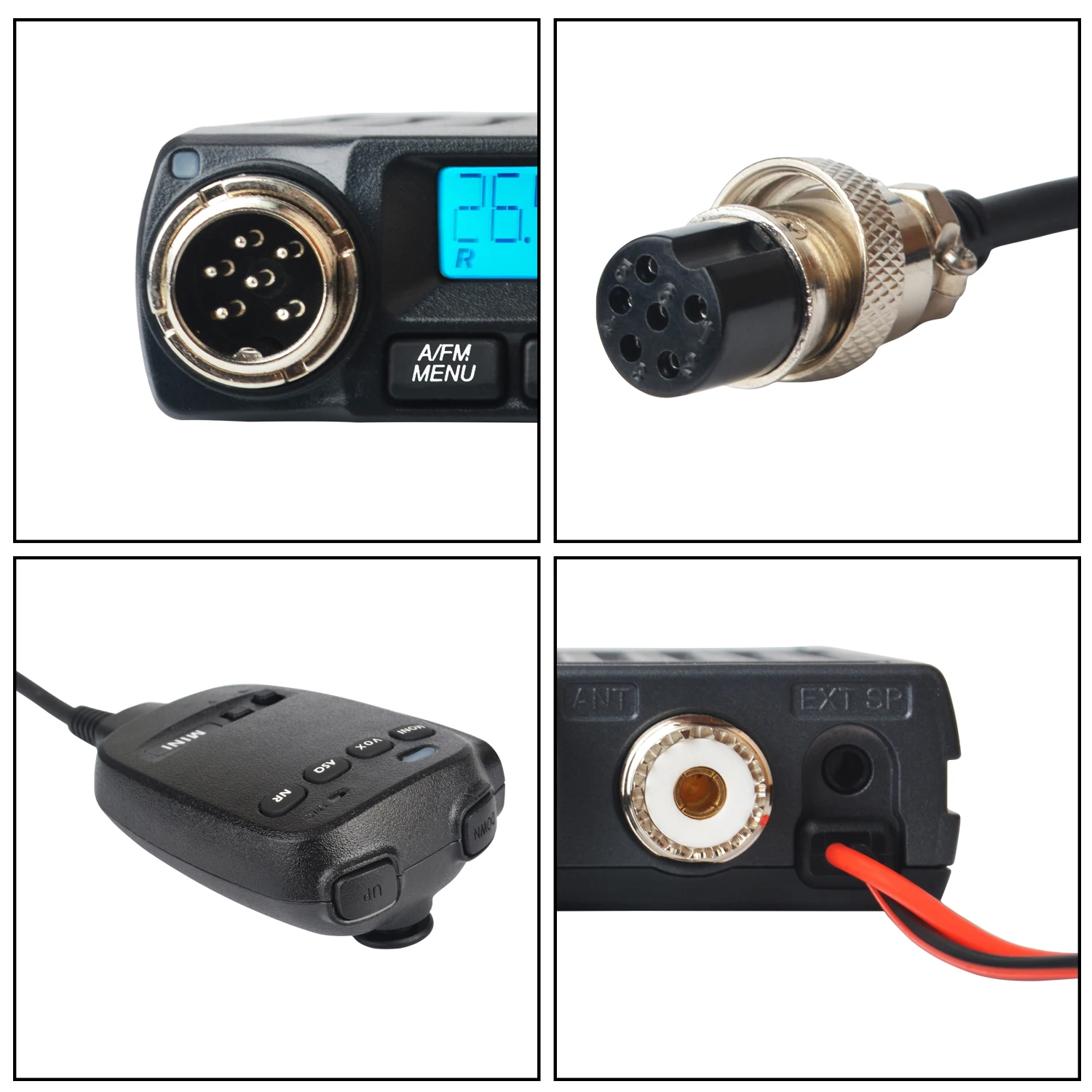

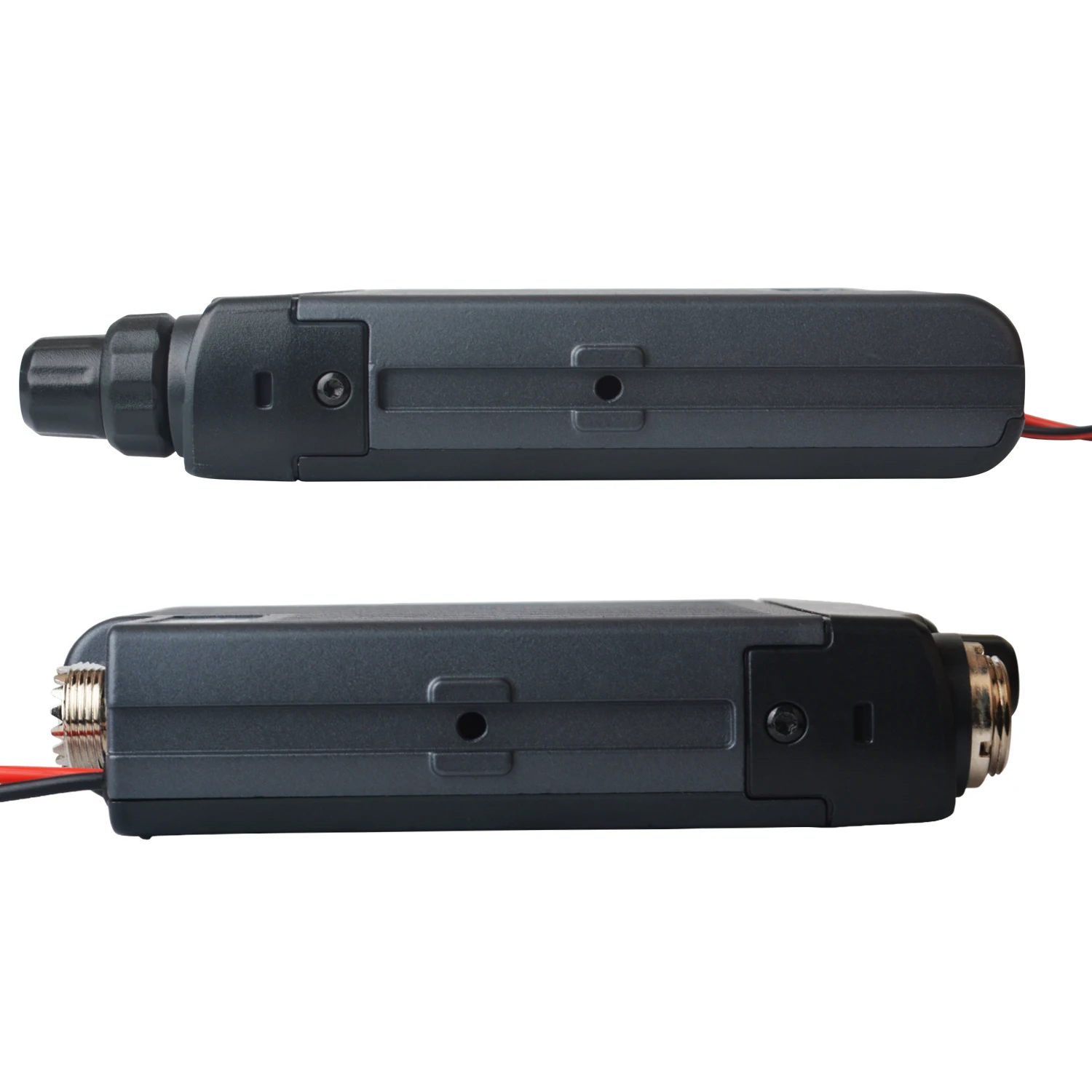

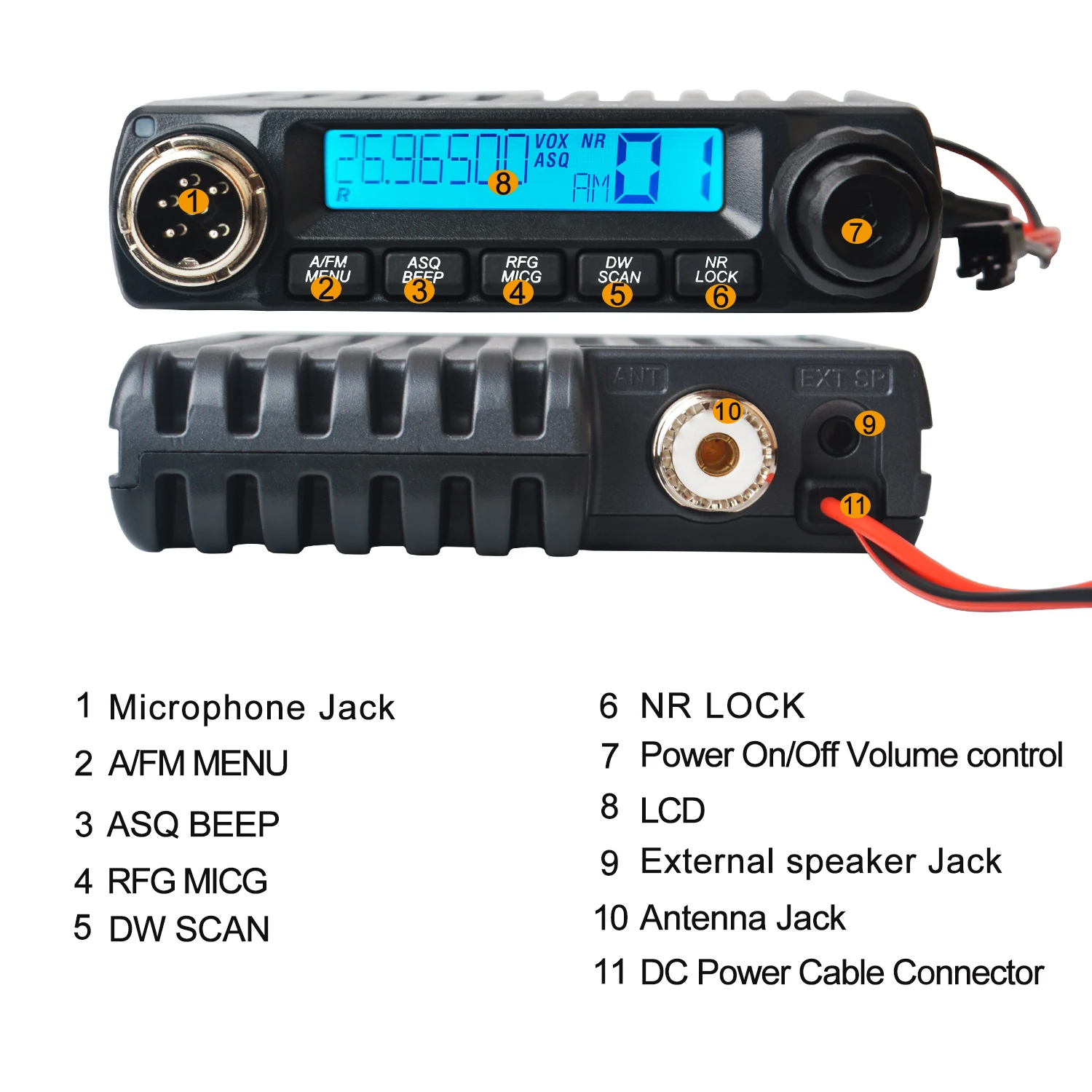

Photos:

Features:

compact mini Size, slim

350gram light weight radio body (microphone speaker not included)

Modulation Mode: FM/AM

Noise Reduce

Echo

RF Gain Adjustment

Mic Gain Adjustment

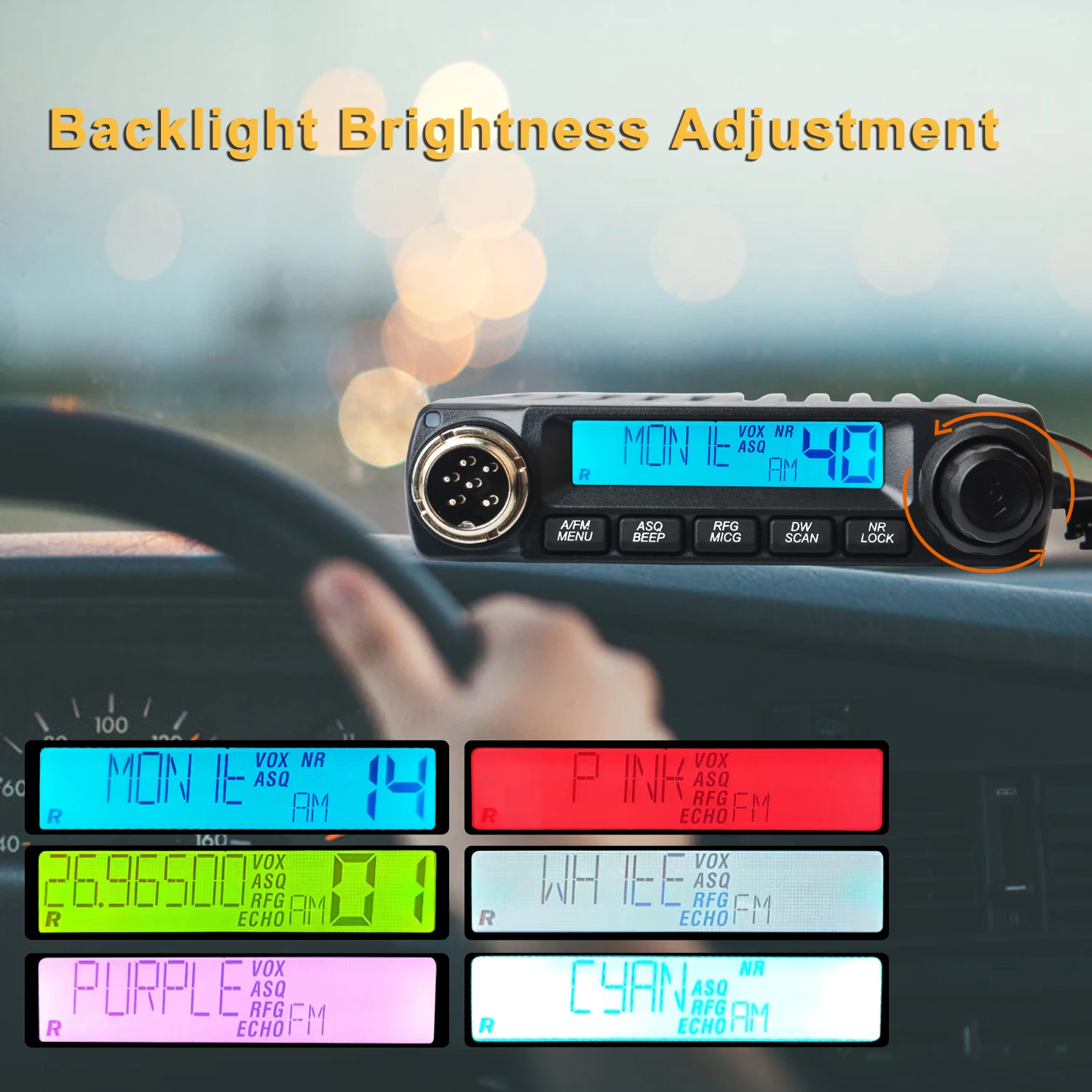

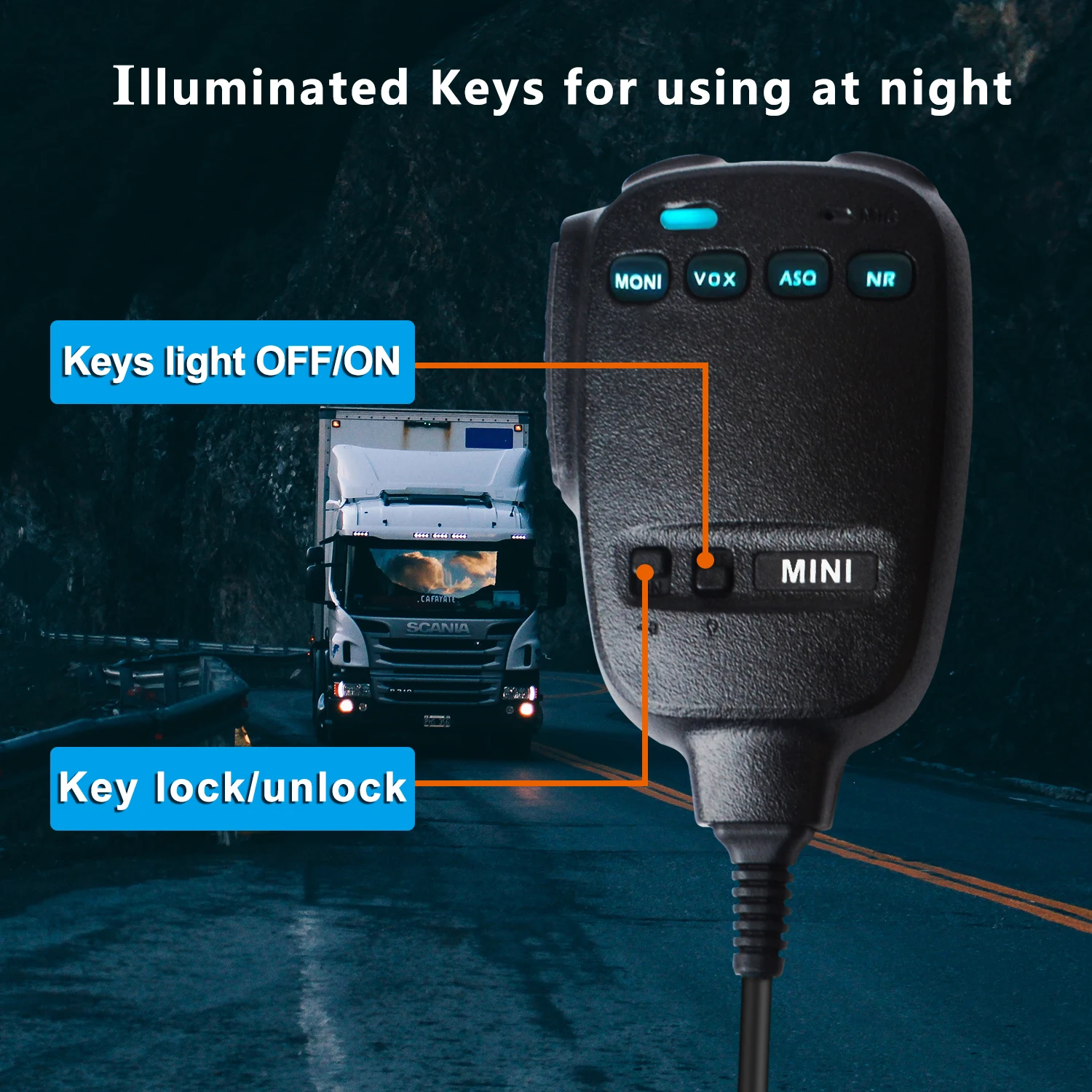

Backlight Brightness Adjustment

Beep Level Adjustment

Roger Beep

SCAN

TOT

MUTE

ASQ/SQ Feature

VOX

Reset

Specifications:

General
Frequency Range	26.96500-27.40500MHz
Frequency Band	European CB Band (Citizen band)
Channels	40 channels
Frequency Control	Phase-locked-loop Synthesizer
Frequency Tolerance	±5.0ppm
Temperature Range	-20°c+50°c
Microphone	With push-to-talk UP/DN buttons and coiled cord
Input Voltage	13.8V
Dimensions	14510727mm
Weight	350g (Radio body only, speaker microphone excluded)
Antenna Connector	UHF,SO239
Transmitter
Power Output	4W
Current Drain	Max.2A (With modulation)
Modulation	FM/AM
Unwanted Sideband	50dB
Frequency Response	AM/FM:450 to 2500Hz
Receiver
Sensitivity	AM:1.0uV for 10dB (S+N)/N at greater than 1/2watt of audio output. FM:1.0uV for 20dB (S+N)N at greater than 1/2 watt of audio output.
Selectivity	AM/FM:6dB@3kHz,50dB@9kHz
Adjacent-Channel Selectivity	60dB AM/FM
Image Rejection	More than 65dB
IF Frequency	AM/FM:10.695MHz 1stIF,455KHz 2ndIF
RF Gain Control	45dB adjustable
Automatic Gain Control (AGC)	Less than 10dB change in audio output for inputs from 10uV to 100,000uV
Squelch	Adjustable,threshold less than 0.5uV. Automatic Squelch control (only AM/FM) 0.5uV
Audio Output Power	2w 16 ohms
Frequency Response	AM/FM:300 to 2800Hz
